IMPROVED SRLs MEET ANSI z359.14-2021

Werner SRL Housing

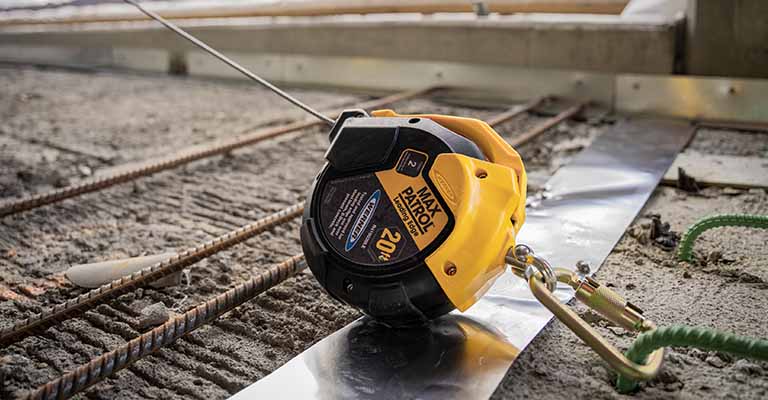

HOUSING

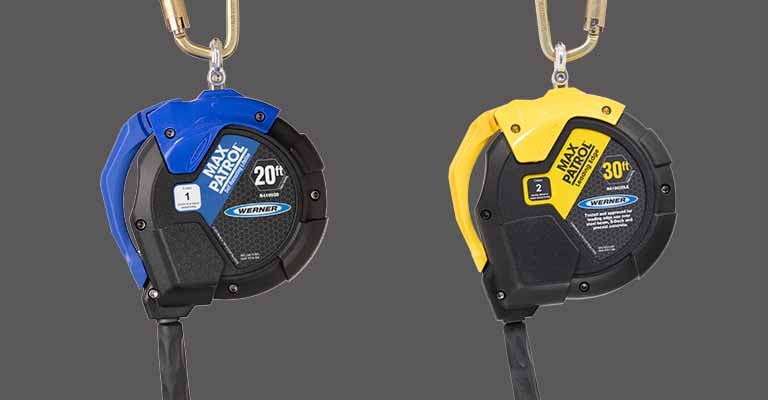

Thermoplastic housing is designed to be lightweight and helps provide a clear identification of Leading Edge (Yellow) or Non-Leading Edge (Blue)

Werner SRL Carry Handle

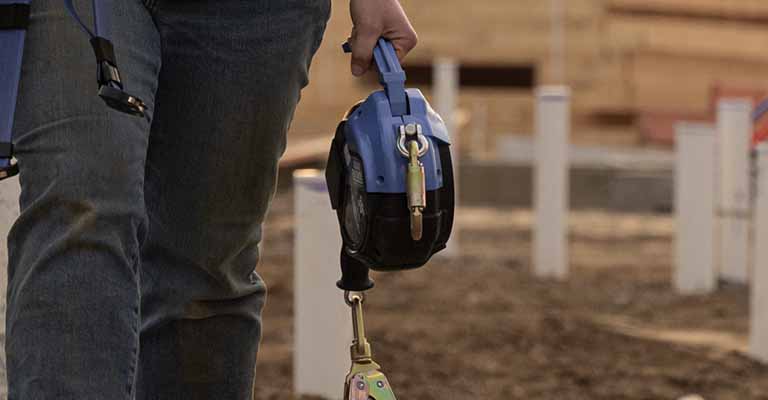

CARRY HANDLE

The industry's best carry handle for better transportation, aiding in productivity

Werner SRL Sticker

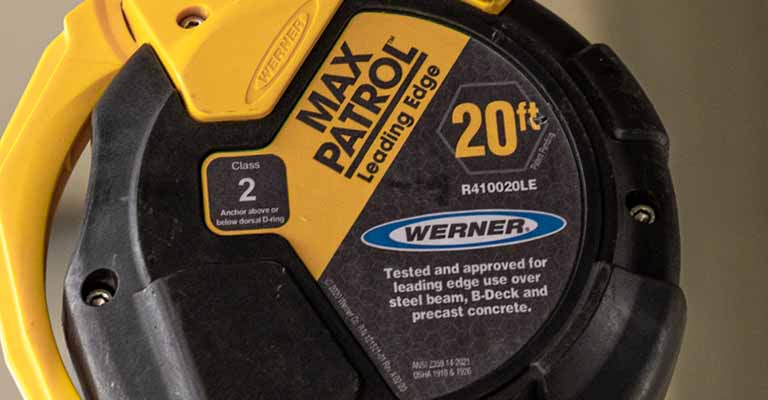

LABELING

Durable labels are attached and protected to aid inspection

Werner SRL Weight Capacity

WEIGHT CAPACITY

Both the Bantam and Max Patrol SRL product lines are tested for an overhead anchor capacity of 400 lbs, well above the 310-lb standard set by ANSI

Overview

The new and improved Werner Bantam and Max Patrol SRLs are designed to new ANSI z359.14-2021 standards. Find your new SRL today!

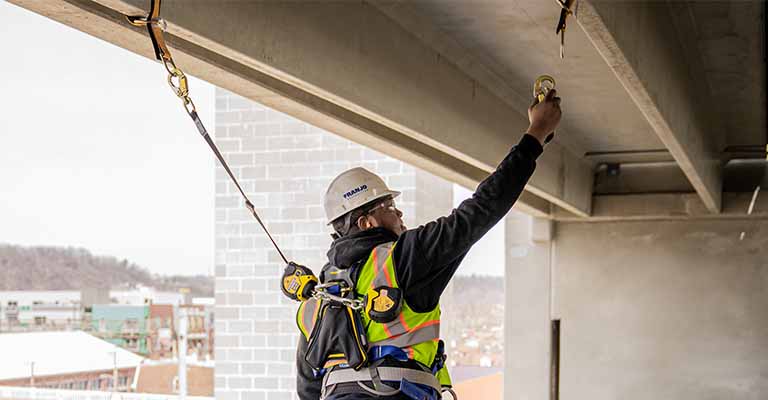

Werner SRL Bantam

Updated Werner Bantam Models

View Models

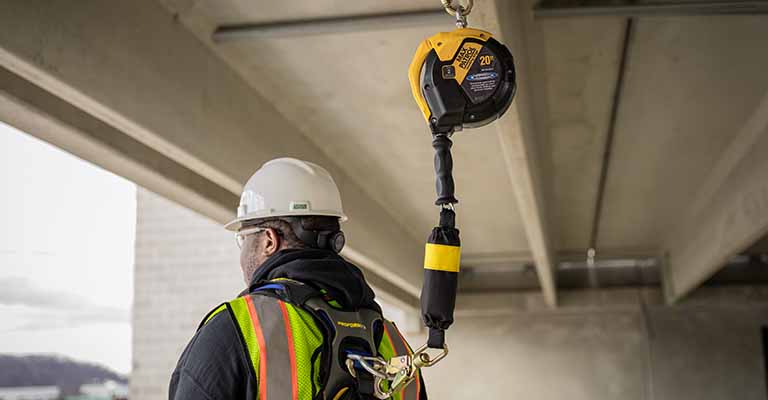

Werner SRL Max Patrol

Updated Werner Max Patrol Models

View Models

Key Changes in ANSI z359.14-2021


CATEGORIES - Class A and Class B are changing to Class 1 and Class 2

ANSI z359.14-2014 (Old)

Class A
- Tested overhead w/ 282 lb weight
- Must arrest fall within 24”

- Average force less than 1,350 lbs
Class B
- Tested overhead w/ 282 lb weight
- Must arrest fall within 54”

- Average force less than 900 lbs



ANSI z359.14-2021 (New)

Class 1
-Tested overhead w/ 310 lb weight
-Must arrest fall within 42”
-Average force less than 1,350 lbs
Class 2
-Meet Class 1
-Tested foot level w/ 310 lb weight
-Average force less than 1,350 lbs
-Arrest distance printed on label and instructions

STATIC AND DYNAMIC STRENGTH TESTING

ANSI z359.14-2014 (Old)

Hold 3,000 lbs for 1 minute
Drop Tests with a 282 lb weight

Specific Tests for SRL-P
-Did not exist



ANSI z359.14-2021 (NEW)

Hold 3,600 lbs for 1 minute
Drop Tests with a 310 lb weight
Specific Tests for SRL-P
-Dual Static to 3,600 lbs
-Dual Connection <1,800 lbs force
-Abrasion test to 3,600 lbs after abrasion for tie-back models
-Fall Factor 2 test

LABELS AND MARKINGS

Visible "Class" Icons
